Product Description

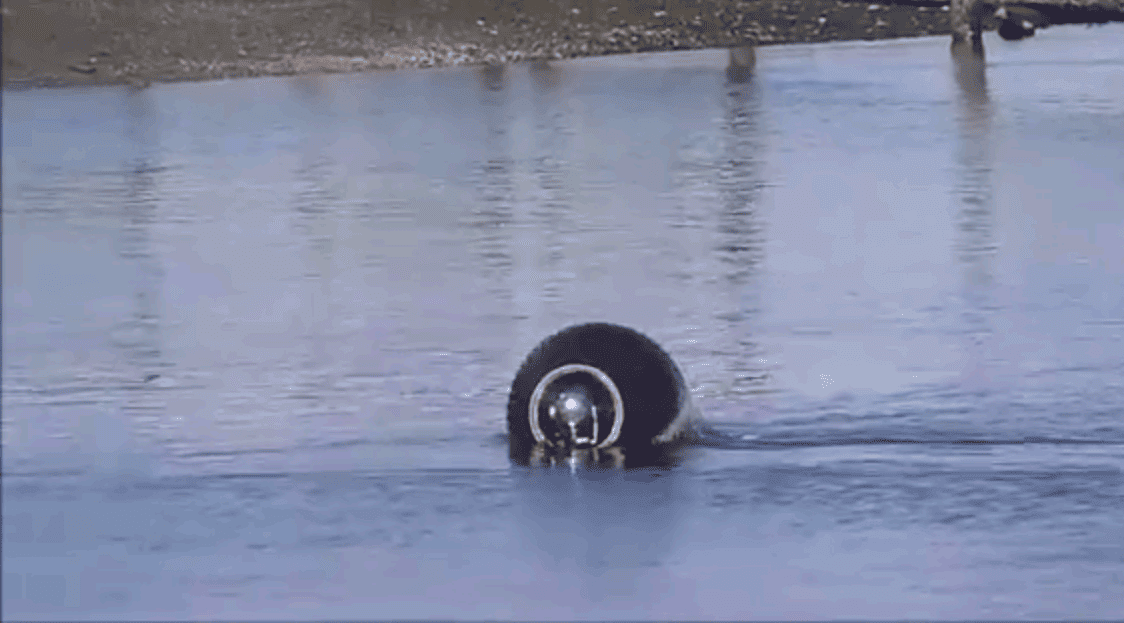

The Rotunbot spherical robot is the only amphibious intelligent robot capable of executing a variety of tasks over prolonged periods in non-friendly environments, including patrolling, monitoring, detection, rescue, confrontation, handling, and integrated search-and-strike

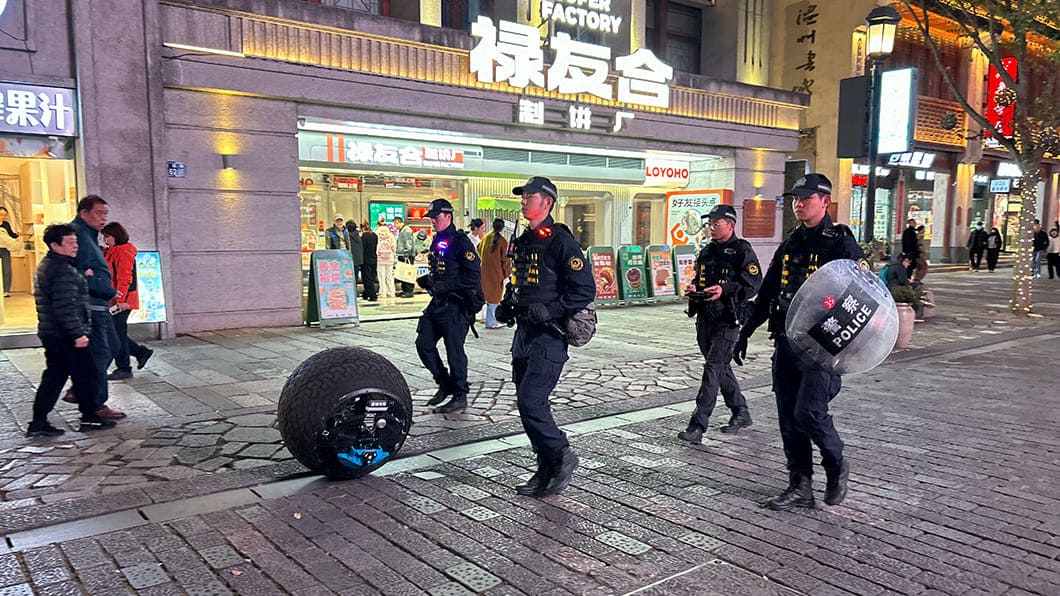

missions. It has been widely adopted for unmanned security prevention and monitoring inspections in critical sectors such as airports, underground utilitytunnels, energy, and chemical industries. Additionally, it is recommended equipment for police operations involving counter-terrorism and maintaining public order.

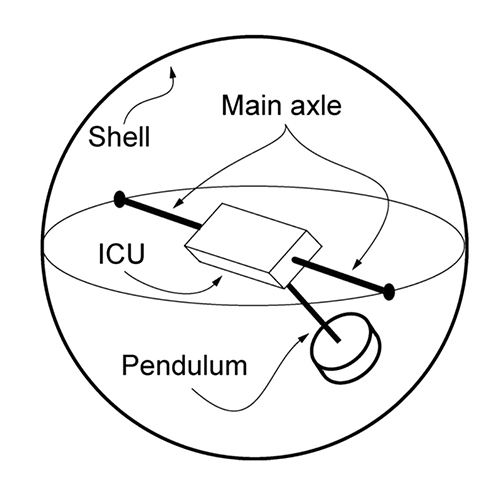

The Rotunbot intelligent amphibious spherical robot originated from the requirement for Mercury landing exploration and innovatively developed an advanced motion principle of ‘spherical structure + pendulum drive + high-speed rolling,’ for which it has obtained related
invention patents worldwide. This fundamentally resolves the inherent defects of existing wheeled and legged robots.
Additionally, a complete solution for high-level autonomous driving has been independently developed to cater to this unique mode of motion. The robot is also equipped with multiple standardized external mounting interfaces, allowing end-users to develop and install various customized payloads to meet the personalized an
The Only Intelligent Amphibious Spherical Robot Applicable for Non-Friendly Environments
‣ The panoramic perception system, inspired by the compound eyes of insects, can stably and accurately obtain information about the surrounding environment while the spherical robot is continuously rolling. This enables the robot to automatically avoid obstacles.
‣ The real-time adaptive motion control system allows the robot to automatically adjust its posture when encountering pits, cracks, collisions, or falls without the need for prior training. It can also automatically adapt to unknown or constantly changing terrains.
‣ The L4-level autonomous driving system enables the robot to fuse real-time panoramic perception information from various sensors, coordinate pre-set tasks, its own operational status, and the surrounding obstacle environment. It automatically adjusts path planning in real-time, eliminating the need for high-precision electronic maps or other preparatory work.
‣ With capabilities including friend-or-foe identification, tracking, combat, and apprehension, the robot can fully autonomously execute tasks such as confrontation, handling, and integrated search-and-strike operations for security, police, and battlefield missions.
Parameters
| Basicparameters | Performanceparameters | Environmental adaptability |
| Diameter | 800mm | Maximum Speed | 35 km/h | Rain | Heavy (Rainfall: 140mm/12h) |
| Mass | 150kg | Cruising Speed | 18 km/h | Snow | Heavy (Snowfall: 15mm/12h) |
| Battery Capacity | 2,400 wh | Maximum ClimbingAngle | 17° | Hail | Large (Hail Diameter: 50mm) |
| Charging Time | ≤3h | Maximum Overrun Height | 300mm | Frog | Strong (Horizontal Visibility:50m) |
| Navigation Time | ≥8h | Zero to Max-Speed Time | 2.5s | Haze | Severe (Horizontal Visibility:50m) |
| Navigation Mileage | ≥100km | Zero to Max-Speed Distance | 5.0m | Wind | Grade 8 (Wind-Speed: 20.7 m/s) |
| Protection Level | IP68 | Max-Speed to Zero Time | 2.8s | Thunder | Level 4 |
| Exploration Proof | Ex-d-IIB | Max-Speed to Zero Distance | 6.5m | Earthquake | Richter 5.5 / Mackenzie VIII |
| Working Noise | ≤45dB | Minimum Turning Radius | 1.6m | Temperature | -25~65C |
Features
Unique robot capable to survival and operation for long time in all non-friendly environments:

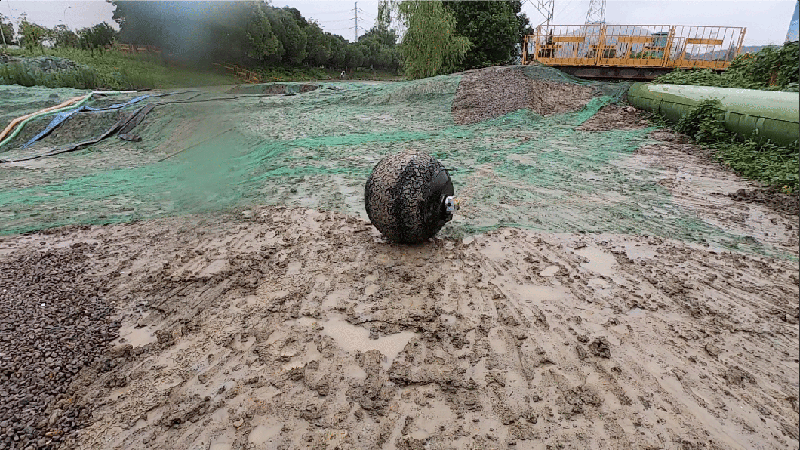

‣ Complex terrains: wilderness, tidal flats, gravel, deserts, etc.
‣ Extreme weather conditions: heavy rain, heavy snow, lightning strikes, typhoons, sandstorms, etc.
‣ Harsh and hazardous working environments: corrosive, radioactive, flammable and explosive environments
‣ Dangerous and adversarial operational scenarios: falls, collisions, violent impacts, battlefield conditions, etc
