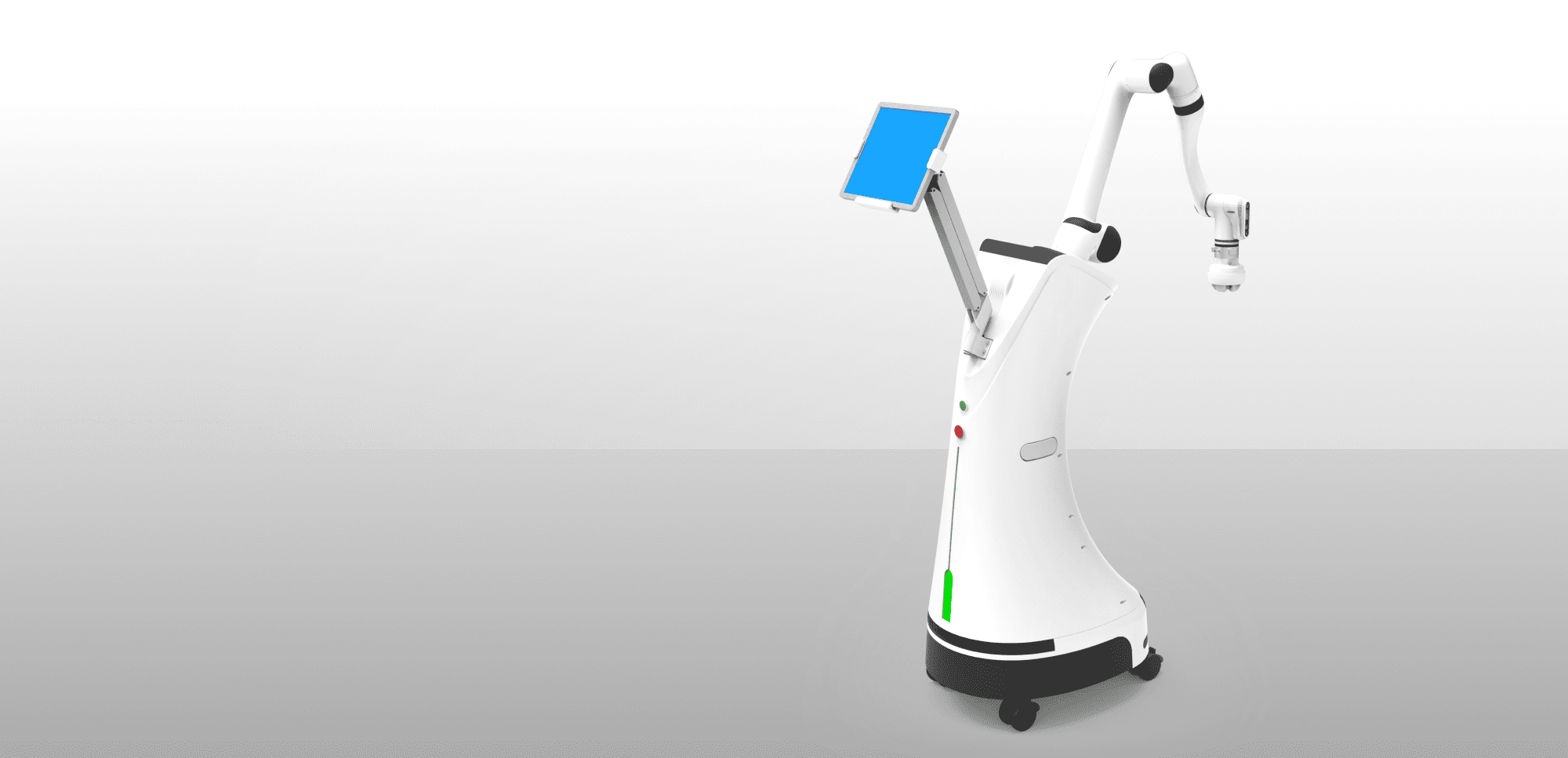

The RMC-HC AI Physiotherapy Robot is an advanced healthcare solution designed to address modern lifestyle-related issues such as lumbar pain, neck stiffness, poor circulation, and fatigue caused by prolonged sitting or improper posture.
Product Description
Nowadays, whether students or office workers oreven middle-aged and elderly people, it is inevitable to sit, stand, or bow heads for a long time, accompanied by more and more people suffering from lumbar pain, decreased digestion and absorption function caused by long-term sitting, as well as cervi-cal acid swelling pain, shoulderand neck stiffness, dizziness, numbness, headache, and nausea caused by long-term head bending. We have developed and designed a healthcare robo to solve these challenges. This robot can generate massage trajecto-ries based on binocular depth vision, cooperate with flexible force control and automatic temperature control of the robotic arm, reproduce mas-ter-level human massage techniques. It quickly enhances the body's sub-health by releasing nerve compression, promoting qi and blood flow, relaxing the shoulder, and back muscular groups. When used with essential oils, it can improve their absorption and stimulate the skin-tightening creation of dermal collagen.
Parameters
| Model | RMC-HC | |
| Power supply | Unrequited love three-wire ~ 220V±10PHz | |
| Platform size | 1610×1180×580mm | |
| Security | Emergency stop | |
| External interfaces | Ethernet port, USB port, HDMI | |
| Working environment | The temperature is -20~50°C, the humidity is ≤85%, and the altitude is <4000m | |
| Master control module | GPU | NVIDIA Volta™ architecture with 384 |
| NVIDlA" CUDA" cores and 48 Tensor cores | ||
| CPU | 36-core NVIDlA Carmel ARM'v8. 2 | |
| 64-bit CPU 6MB L2 + 4MB L3 | ||
| Memory | 8 GB 128-bit LPDDR4x | |
| 51.2GB/s | ||
| Storage | 128G SSD | |
| Number of network ports | 1 (Gigabit Ethernet port) | |
| Number of USB3.0 interfaces | 4 | |
| Other interfaces | HDMI×1, DP×1 | |
| WiFi, USB2.0 Micro-B | ||
| Size | 90×103×35mm | |
Features
Configured
It can be broadcast by voice, voice prompts for operation steps, visual positioning and infrared imaging, can scan the physical characteristics of the human body and assist in diagnosis of the disease, and can collect and transmit data.
Good interactivity
Equipped with human-computer interaction interface, it can manually input the selection of massage parts, massage gears and other information; The equipment status can be displayed in real time, so that the user can easily operate the robot.
 | Physiotherapy function Fascial layer relaxation, pain relief, blood circulation, auxiliary function recovery, beauty and skin care, etc. |
Good interactivity Equipped with human-computer interaction interface, it can manually input the selection of massage parts, massage gears and other information; The equipment status can be displayed in real time, so that the user can easily operate the robot. |  |
 | Clean and hygienic The end massage tool can be cleaned and replaced to ensure cleanliness and hygiene during the massage, so that users can rest assured. |
