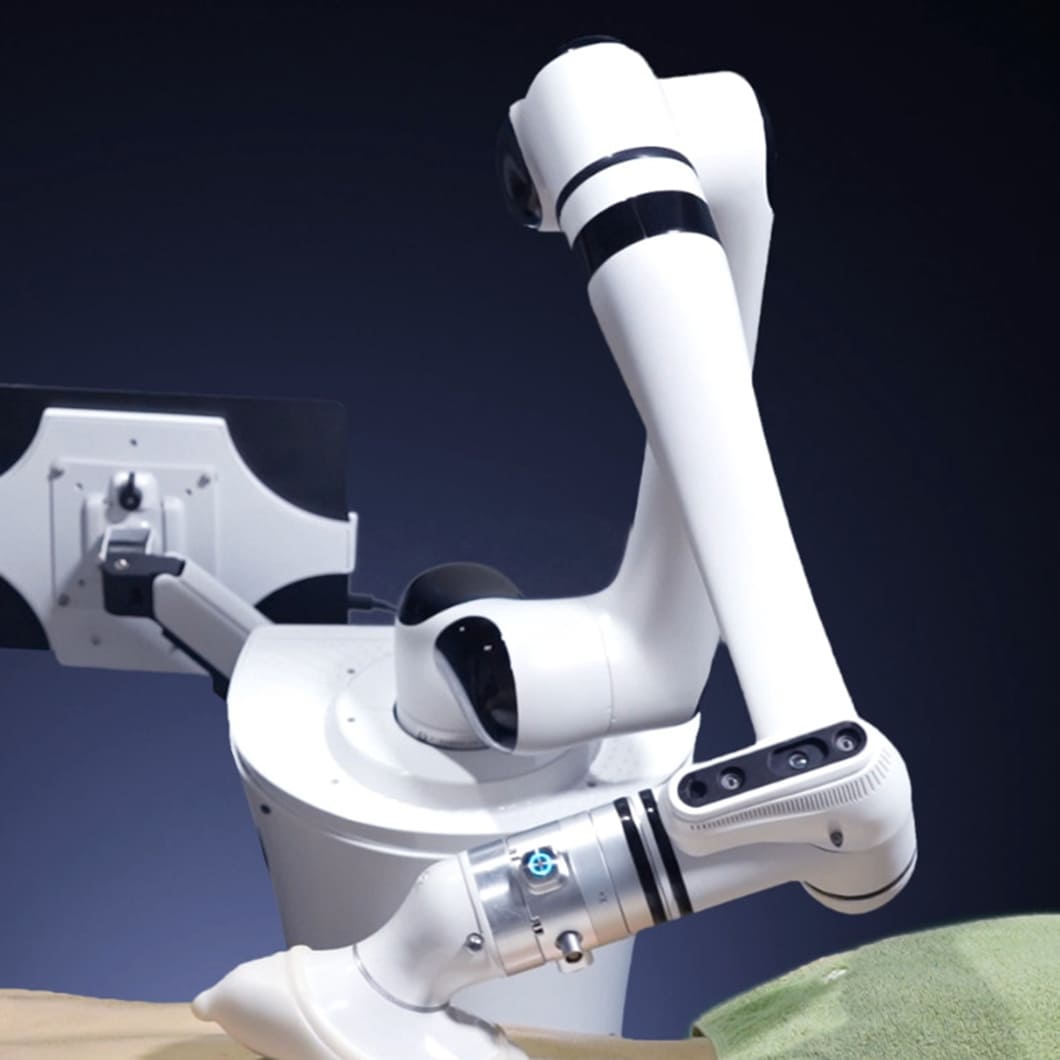

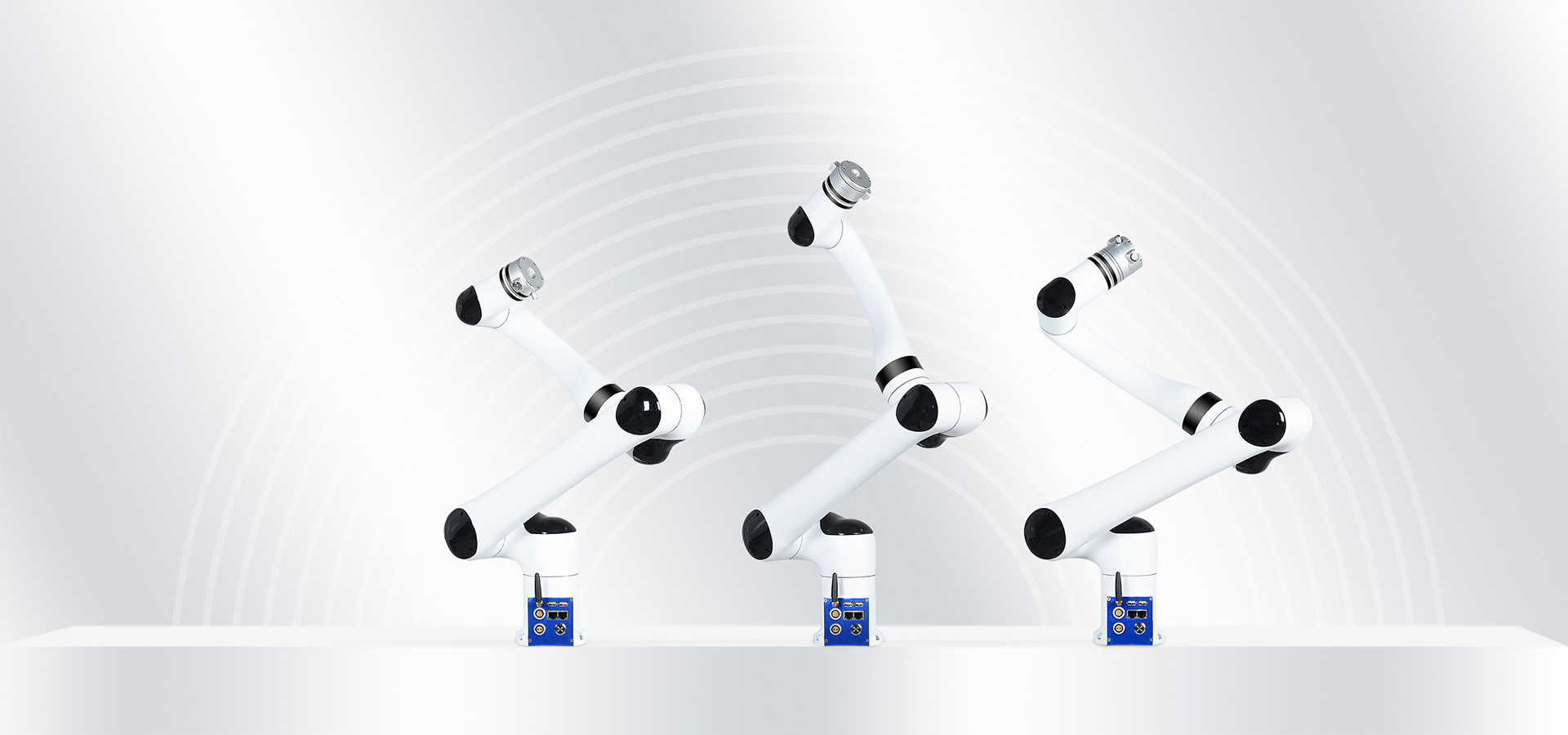

The RML Series Ultra-lightweight Lengthening Robotic Arm is engineered for applications that demand extended reach, precision, and efficiency. Featuring modular joint design, low power consumption, and an integrated controller, the RML63 offers a perfect balance of strength and flexibility. With exceptional load capacity, ±0.05 mm repeatability, and a 900 mm working range, it ensures reliable performance in complex and large-scale operations.
Product Description

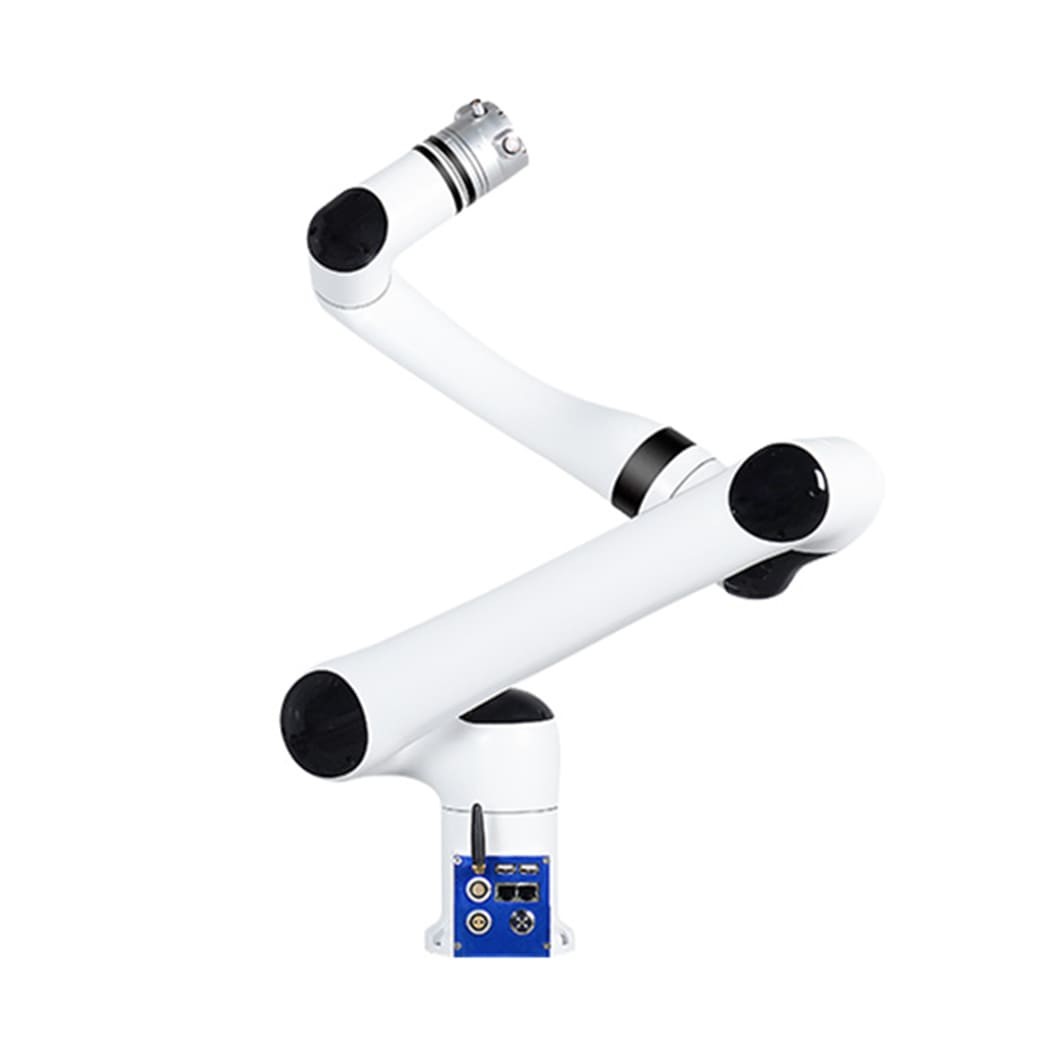

The RML63-B, a basic version of the 6-dof long arm span robotic arm, is self-developed and produced by RealMan. The controller is integrated at the bottom of the robotic arm, lightweight and flexible. The modular joint design of the robotic arm enables sufficient workspace, meeting the requirements of more complex application scenarios. Maximum power consumption ≤200W, comprehensive power consumption ≤100W.
Parameters

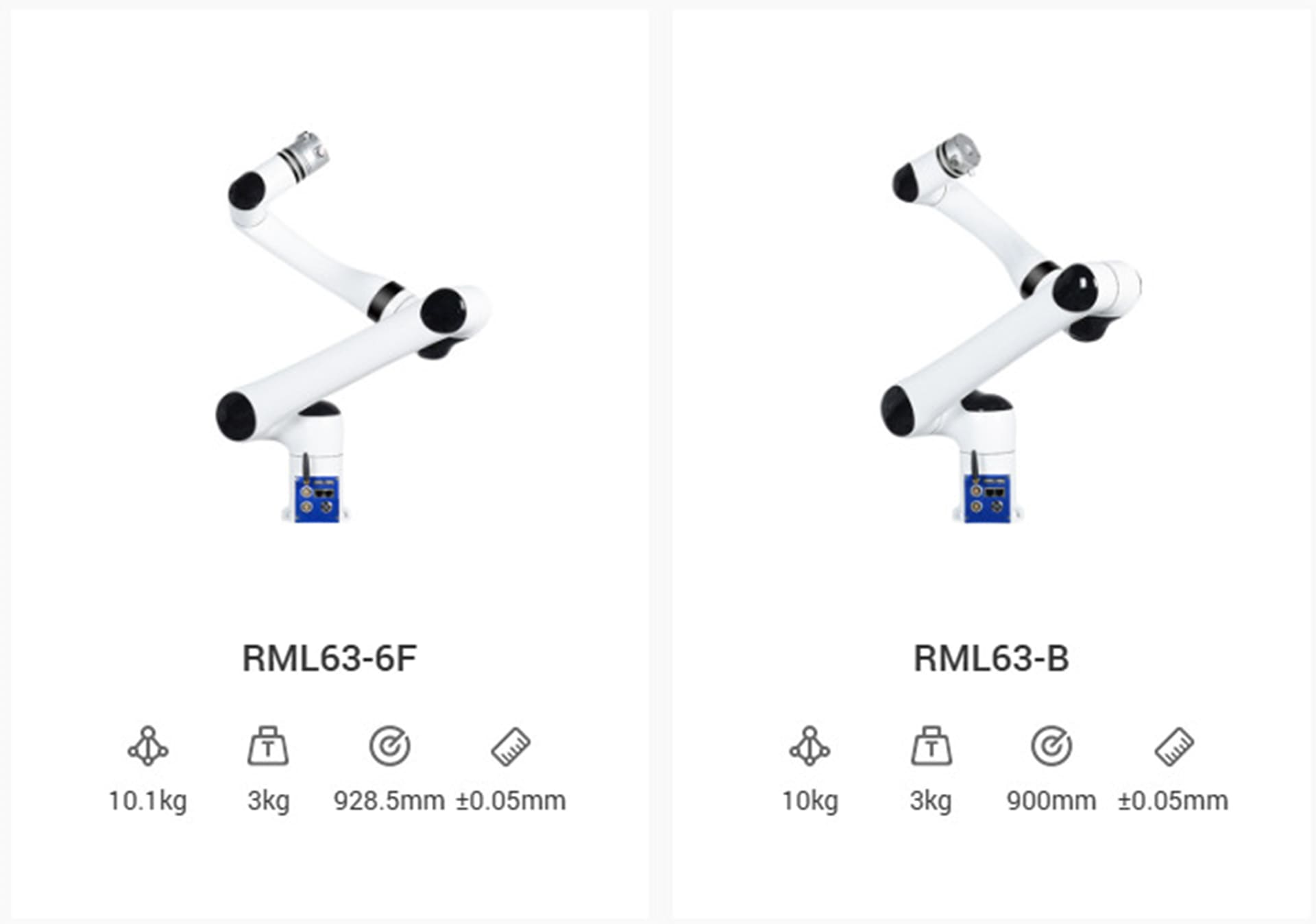

| Parameter | RML63-B | RML63-6F |
| Degree of freedom | 6 | 6 |
| Payload | 3kg | 3kg |
| Body weight | 10kg | 10kg |
| Repeatability | ±0.05mm | ±0.05mm |
| Working radius | 900mm | 928.5mm |
| Six-axis force range | / | 200N/7Nm |
| Six-axis force accuracy | / | <0.1% FS |
| Power supply voltage | DC24V | DC24V |
| Power consumption | Maximum power consumption 200W, comprehensive power consumption 100W | |
| Protection level | IP54(robotic arm body) | |
| Material | Aluminum alloy | |
| Controller | Integrated | |
| Communication mode | WIFI/network port/Bluetooth/USB serial port/RS485 | |
| Control mode | Drag and drop teaching/Teaching pendant/API/JSON | |
| Joint motion range | J1 ±178°、J2 ±178°、J3 +145°~-178°、J4 ±178°、J5 ±178°、J6 ±360° | |
| Joint maximum speed | J1-J2 180°/s、J3-J6 225°/s | |
Features
 | Exceptional Load Capacity and Extended Reach The RML63 robotic arm is designed with a 3 kg rated load capacity, a total weight of 10 kg, and a maximum load capacity of 5 kg. With its impressive 900 mm working range, the RML63 excels in tasks requiring extended reach and high precision across large workspaces. Its long arm span ensures optimal performance and stability, making it ideal for applications that demand both durability and flexibility in extended operations. |
Shared Excellence in Design and Functionality In addition to its unique strengths, the RML63 shares many of the advanced features found in the RM65, including ultra-high precision with a repeatability accuracy of ±0.05 mm, an open API for flexible integration, low power consumption, and robust safety protocols. These shared characteristics ensure that the RML63 delivers reliable, high-performance operation across a variety of demanding applications. |  |
